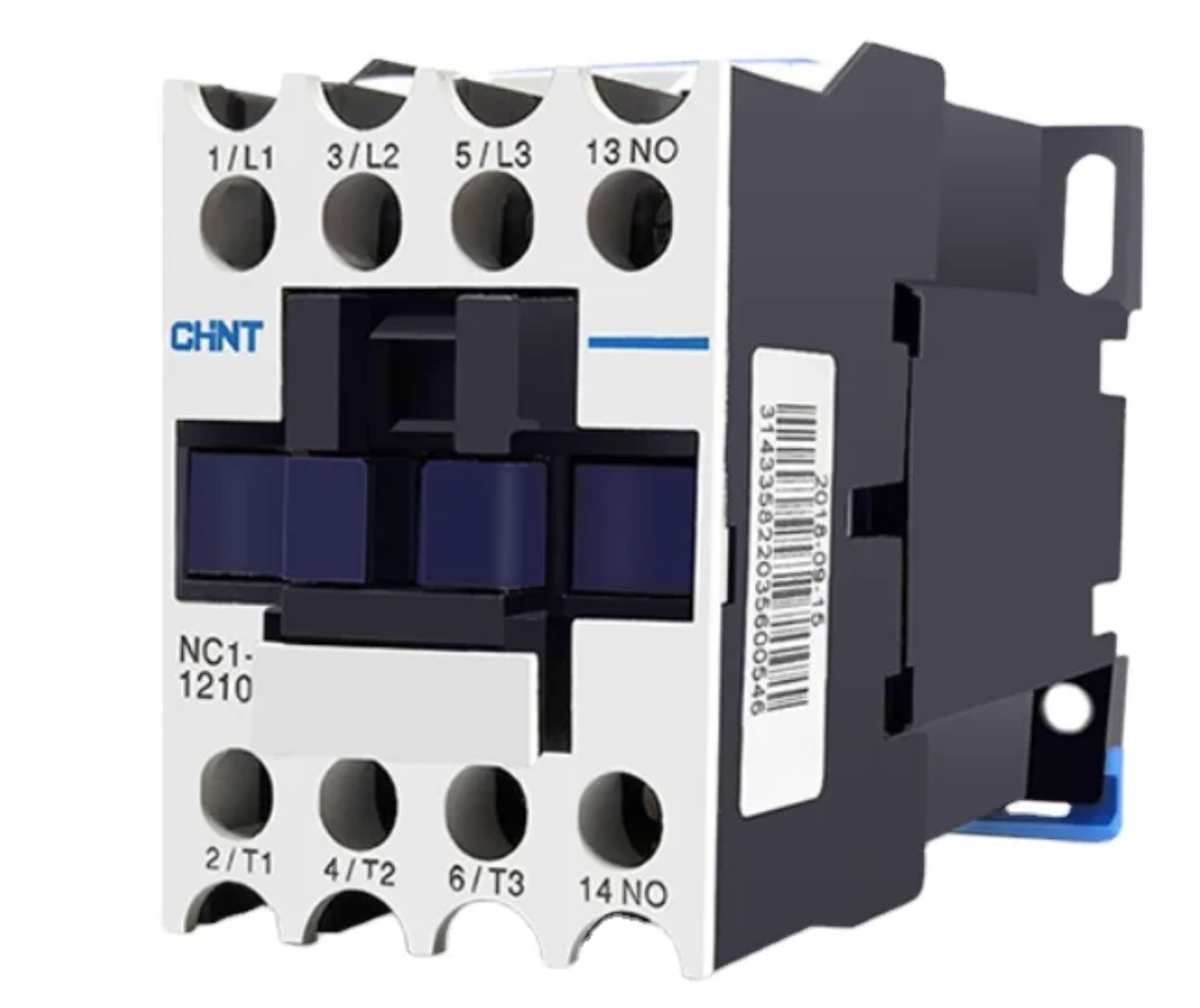

Chint NC1-1210 220vac contactor

Chint NC1-1210 220vac contactor A 3-pole AC contactor commonly used for remote making and breaking of electrical circuits, as well as frequent starting and control of AC motors. It is a workhorse in industrial and domestic control panels due to its compact size and reliability. The technical specifications ​Fe​ature Specification Model NC1-1210 Rated Operational Current (I_e) 12A (at AC-3, 380/400V) Thermal Current (I_{th}) 20A Rated Operational Voltage (U_e) Up to 690V AC Rated Insulation Voltage (U_i) 690V Power Rating (AC-3, 380/400V) 5.5 kW (approx. 7.5 HP) Number of Poles 3P (3 Main Power Poles) Auxiliary Contacts 1 NO (Normally Open) Functional Details ​Coil Voltages: Available in various AC voltages, most commonly 220V, 240V, 110V, or 415V (Check the side of your specific unit for the coil rating). ​Moun​ting: Can be mounted on a standard 35mm DIN rail or via screw fixing. ​Compatibility: Often paired with NR2 thermal overload relays for motor protection. ​Standard Compliance: IEC/EN 60947-4-1. Key feature .Compact design . Best durability . ​Ambient Temperature: Rated for operation between -5°C and +40°C. Where to buy chint contactors in nairobi nyamakima Galactic solar and electricals ltd Https://galacticelectricals.com Location: Nyamakima, coast bus along duruma road, Nairobi
