D9511 JOYELEC ATS CONTACTOR
Description

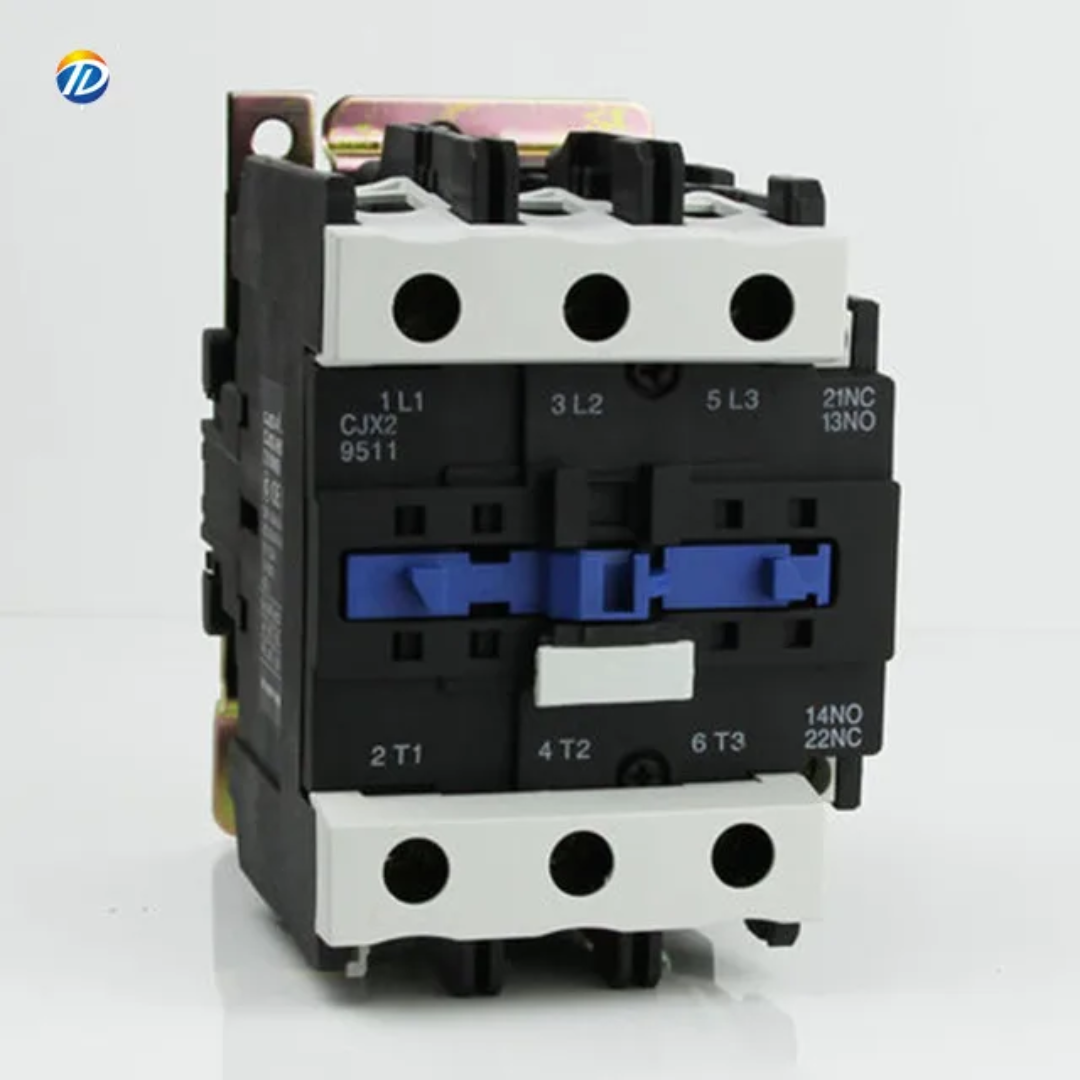

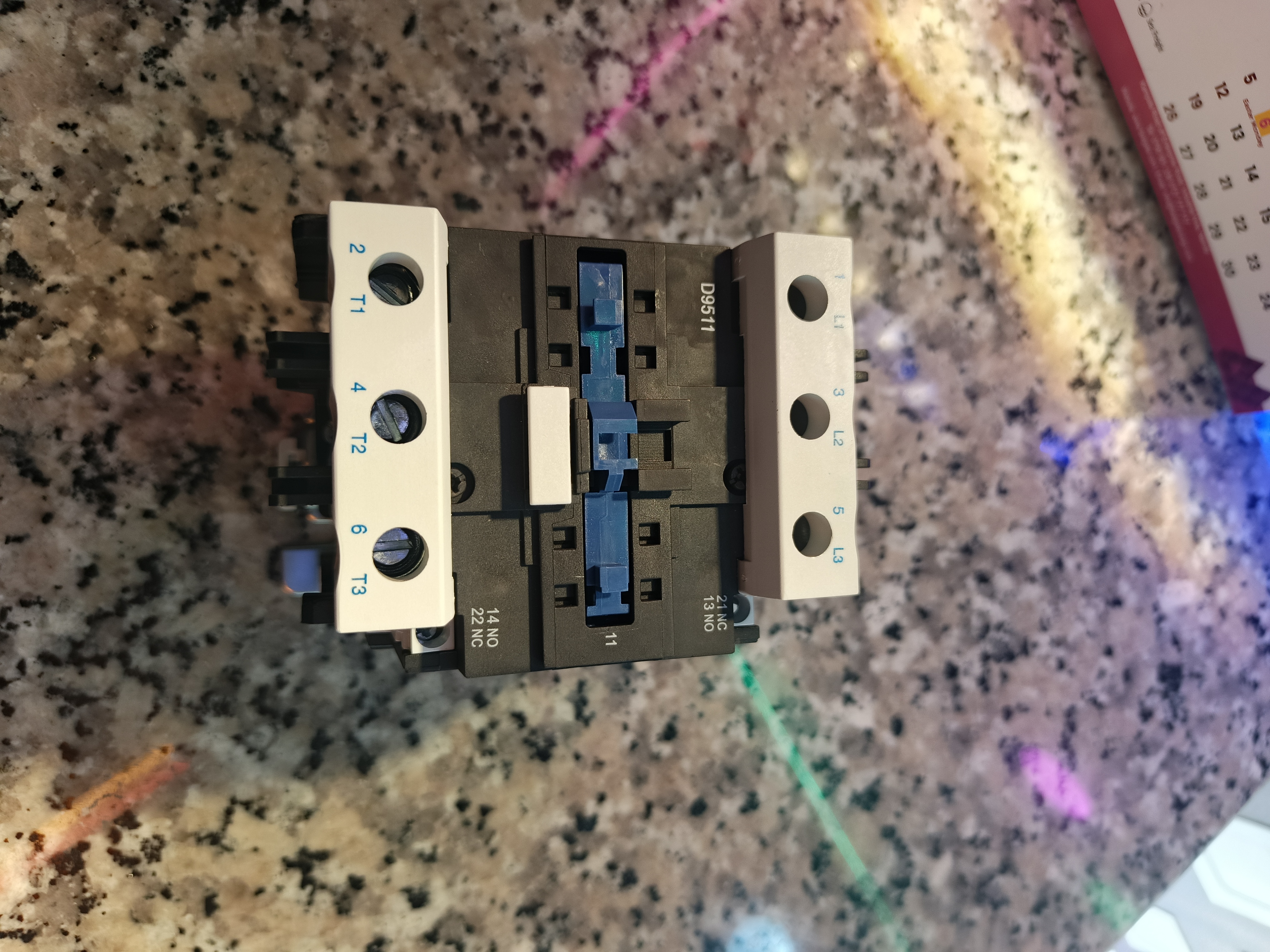

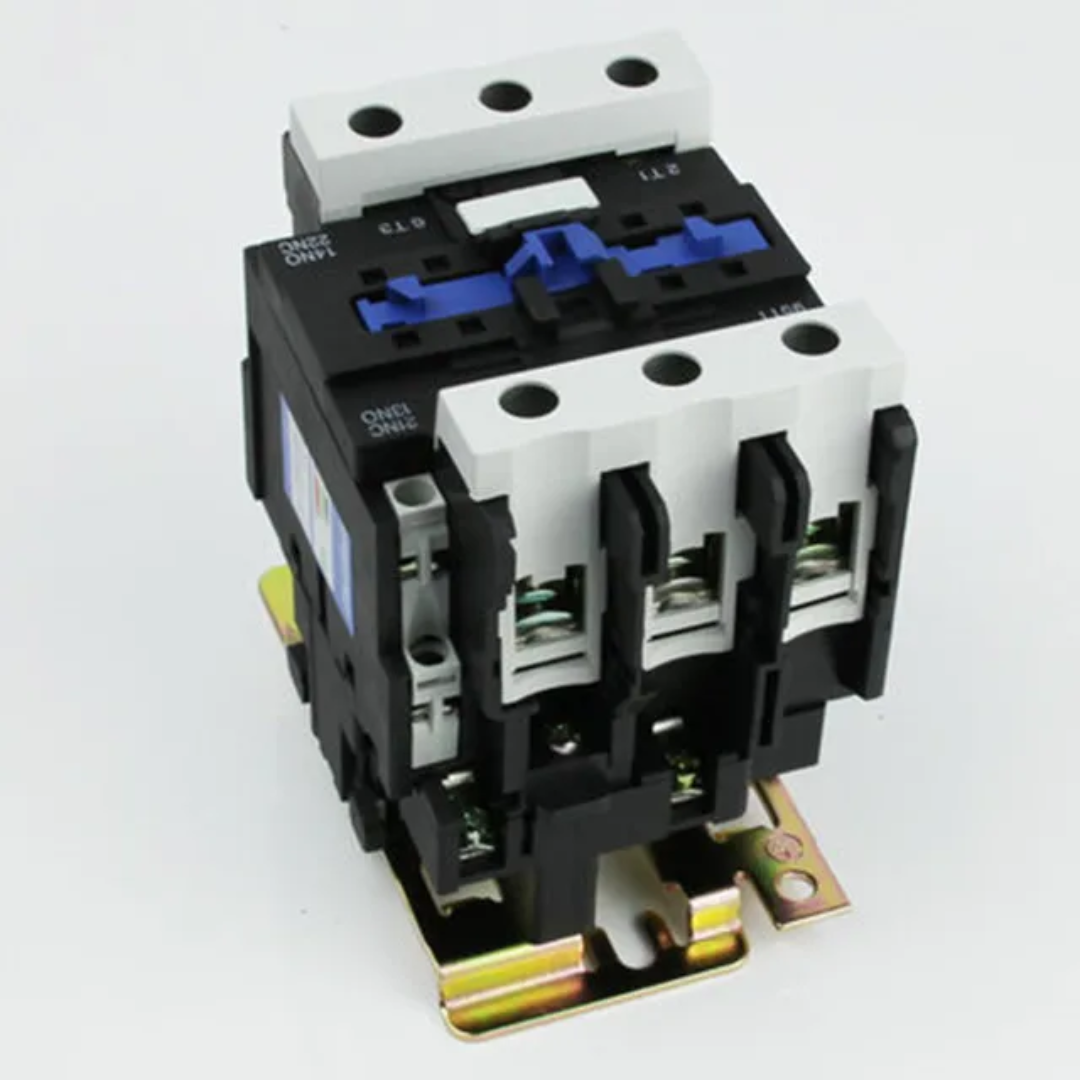

Joyelec D9511 contactor its cross-referenced as LC1-D9511 or CJX2-9511 its a heavy-duty 3-pole AC magnetic contactor designed for industrial motor control and power circuit switching. technical specifications Parameter Specification Rated Operational Current (I_e) 95A (AC-3, \le 440V) / 125A (AC-1, \le 440V) Poles 3-Pole (3 Main Contacts) Motor Power Rating (AC-3) 45 kW at 380/400V / 25 kW at 220/230V Rated Insulation Voltage (U_i) 660V – 690V Auxiliary Contacts 1 NO + 1 NC (Normally Open + Normally Closed) Frequency 50/60 Hz Coil & Control Details Standard Coil Voltages: Typically available in 220V/240V AC or 110V/120V AC. *Voltage Limits* Operational: 0.85 \dots 1.1 \times U_c Drop-out: 0.3 \dots 0.6 \times U_c Mounting: Supports standard 35mm or 75mm DIN rail mounting or screw plate mounting. Technical context As this is a 95A contactor, it is frequently used in Automatic Transfer Switches (ATS) or for starting large industrial motors. It can be paired with a thermal overload relay as LRD33 series or equivalent to provide full motor protection.
Similar products: chint D9511 contactor, shneider contactors, Tronics contactors.
