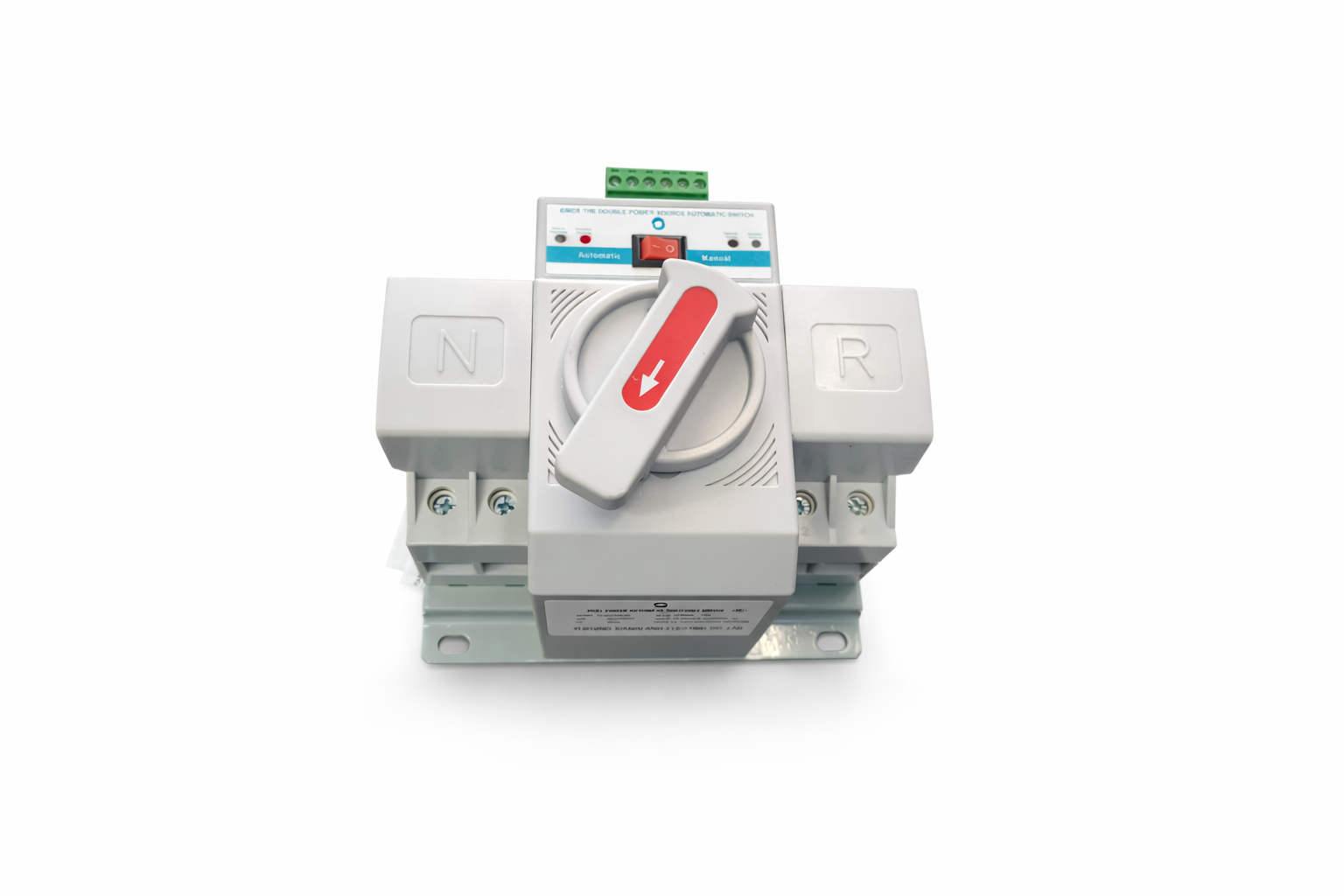

63A 2P Motorized Automatic Transfer Switch (ATS)

The 63A 2P Motorized Automatic Transfer Switch (ATS) is a compact and efficient solution for automatic power switching in single-phase systems. Designed for 220V/230V applications, it ensures uninterrupted power supply by automatically transferring load between the main utility and backup sources such as generators or inverters.

With both automatic and manual operation modes, this ATS provides flexibility and control while maintaining high safety standards. Its fast switching capability minimizes downtime, making it ideal for homes, offices, and light industrial setups.

Built for durability and ease of installation, it mounts conveniently on a DIN rail, making it perfect for modern distribution boards.

Key Features

• 63A Rated Current – Handles high electrical loads
• Automatic Transfer – Seamless switching between power sources
• Manual Override – Added control when needed
• Fast Switching Time – As low as ≤50ms
• 2-Pole Design – Switches both phase and neutral
• Motorized Operation – Reliable and efficient switching mechanism
• DIN Rail Mounting – Easy installation in control panels
• Durable Build – Long mechanical and electrical lifespan

Technical Specifications

Feature/Specification

Rated Current: 63A

Poles: 2P (Phase + Neutral)

Rated Voltage: 220V / 230V AC

Frequency: 50/60Hz

Insulation Voltage: Up to 690V

Transfer Time: ≤50ms (fast models) / up to 2s

Operation Mode: Automatic & Manual

Mechanical Life: ≥ 8000 operations

Electrical Life: ≥ 1500 operations

Mounting: 35mm DIN Rail

Applications

• Homes with backup generators or inverters
• Offices and small businesses
• Solar power systems
• Server rooms and IT setups
• Light industrial installations
