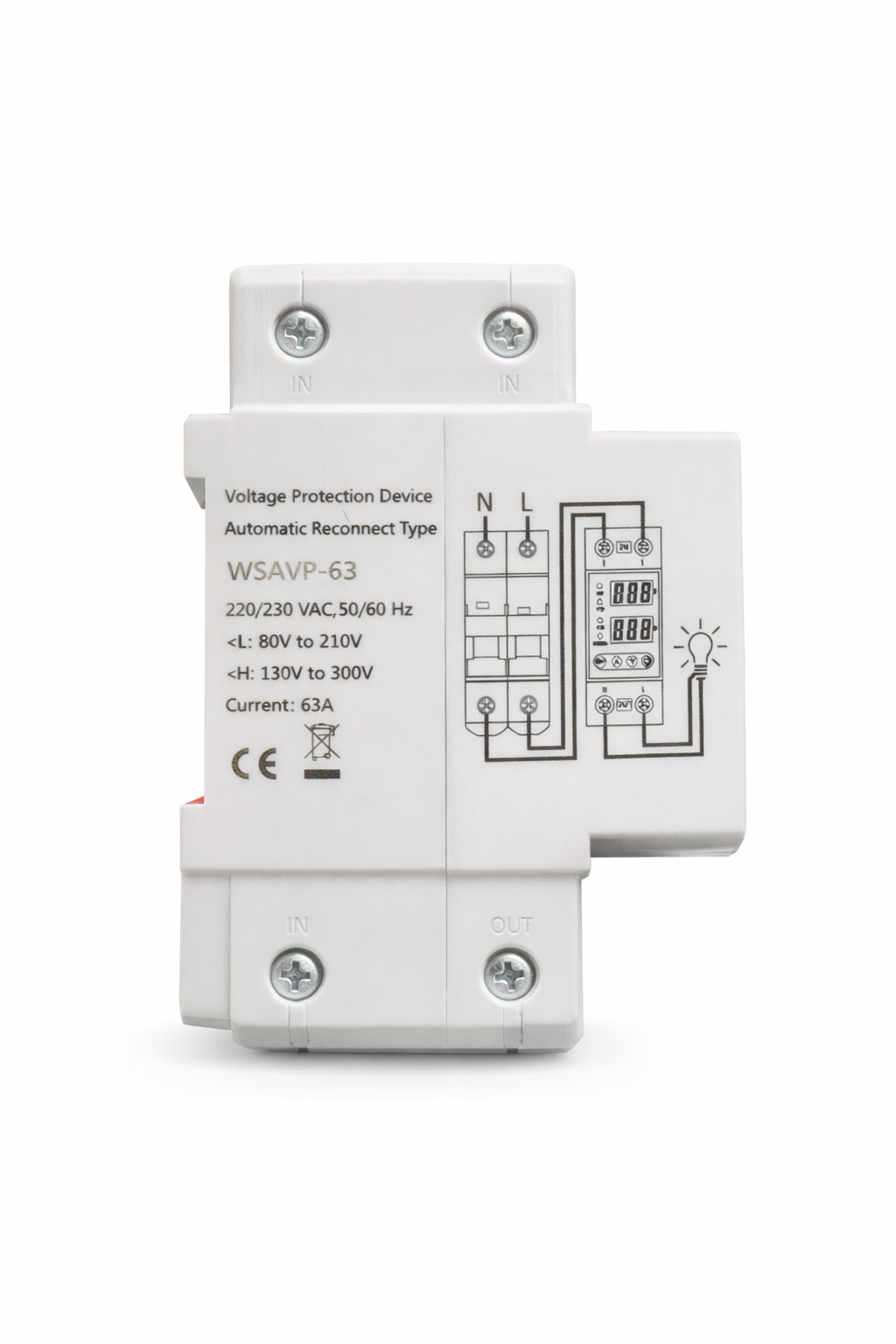

2P 63A Adjustable Voltage Protector (DIN Rail)

The 2P 63A Adjustable Voltage Protector is a reliable DIN-rail mounted protection device designed for single-phase (220V/230V) electrical systems. It safeguards your electrical installations and appliances against overvoltage, undervoltage, and overcurrent conditions.

Equipped with a dual LED display, this unit provides real-time monitoring of voltage and current. Its adjustable protection ranges and delay settings give you full control, while the automatic reset function ensures seamless operation after faults.

Perfect for residential, commercial, and light industrial applications where power stability is critical.

Key Features

• 63A Load Capacity – Suitable for high-power applications
• 2-Pole Protection – Phase + Neutral switching
• Full Protection: Overvoltage, undervoltage & overcurrent
• Fully Adjustable Settings for customized protection
• Dual LED Display – Real-time voltage & current monitoring
• Auto Reset Function – Restores power after stabilization
• Adjustable Delay Time – Prevents frequent switching
• DIN Rail Mount – Easy installation in distribution boards

Technical Specifications

Feature/ Specification

Poles: 2 (Phase + Neutral)

Rated Voltage: 230V AC

Frequency: 50/60Hz

Rated Current: 63A

Overvoltage Range: 221V – 300V (Adjustable)

Undervoltage Range: 150V – 219V (Adjustable)

Overcurrent Range: 1A – 63A (Adjustable)

Cut-off Time: 0.1s – 30s (Adjustable)

Recovery Time: 2s – 600s (Adjustable)

Power Consumption:< 2W

Display: Dual LED (Voltage & Current)

Mounting: 35mm DIN Rail

Applications

• Home distribution boards
• Office electrical systems
• Solar and inverter systems
• Industrial control panels
• Sensitive electronic equipment
